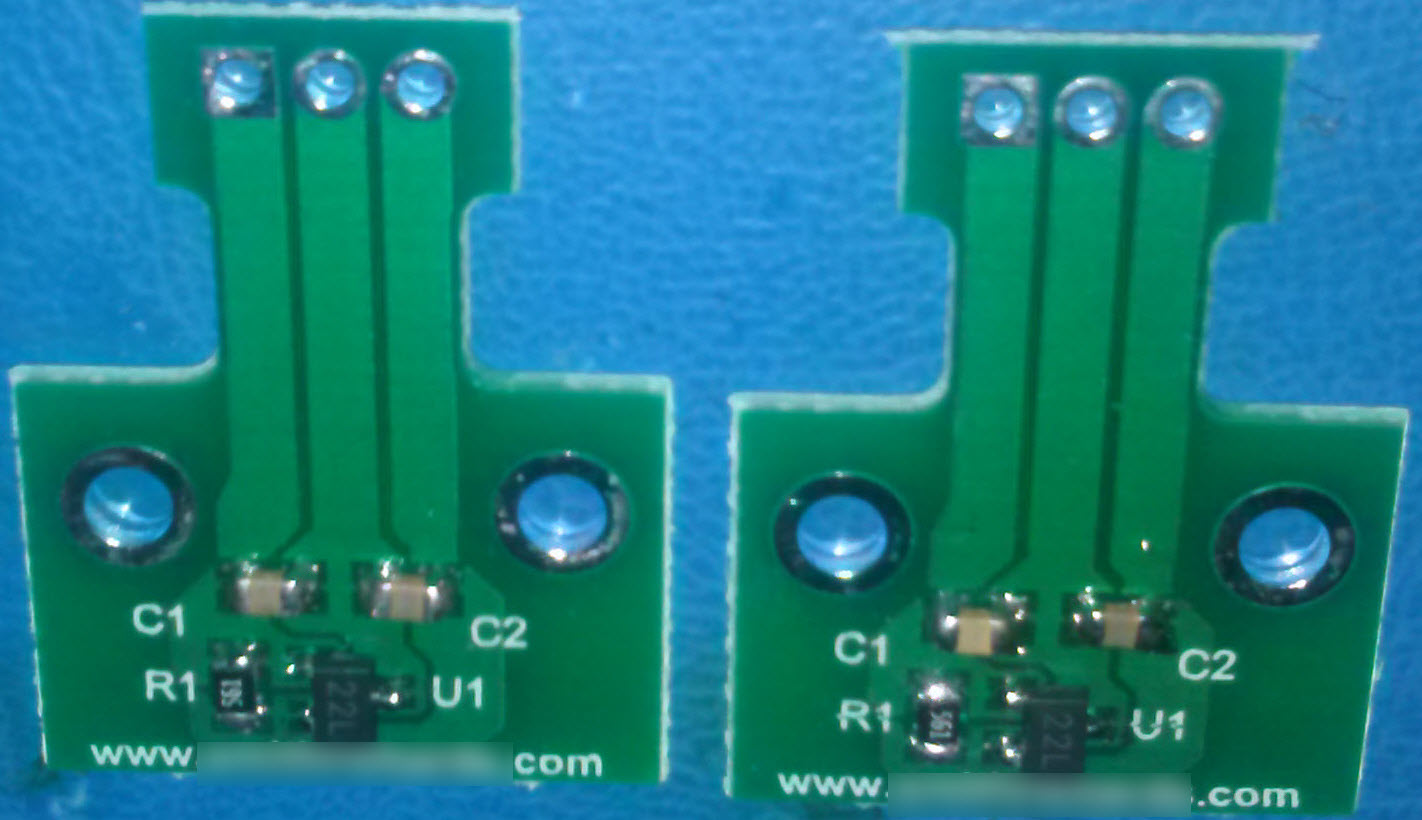

Motor Position Feedback PCB

Industry Standard Chipset

In order to protect against part obsolescence, an industry standard part was chosen.   In the event that the part in the BOM becomes obsolete, it can be easily replaced with a similar part.   Of course, the part in the BOM to begin with is the most cost effective part made by a reputable electronics part manufacturer.

Custom Size

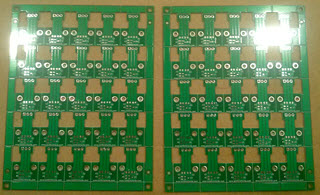

Instead of getting a mechanical sample of the customer's motor assembly, they provided me with a 3D model of the PCB size and shape that they needed.   I was able to import the 3D step model into my design software, and automatically re-shape the PCB to their exact specifications.
